LC01 - BPT - LITHOS - Audio Entry Panel
LC01 - BPT - LITHOS - Audio Entry Panel
LC01 - BPT - LITHOS - Audio Entry Panel
LC01 - BPT - LITHOS - Audio Entry Panel-4

LC01 - BPT - LITHOS - Audio Entry Panel

BPT SKU: LC01

$229.00 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Features Specs
Includes:
Contains:

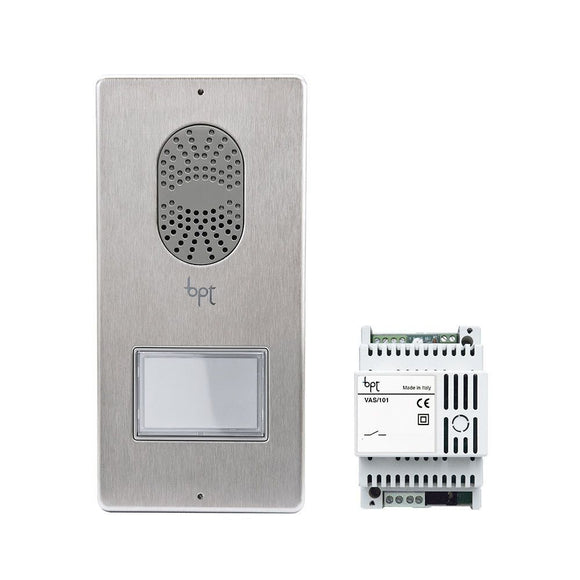

  • 1x LC 01 - Entry panel
  • 1x DP H - Double Height Single Push Button
  • 1x VAS 101 - 18 V DC - 1000 mA Power Supply
Features:
  • AISI 316L brushed stainless steel finish

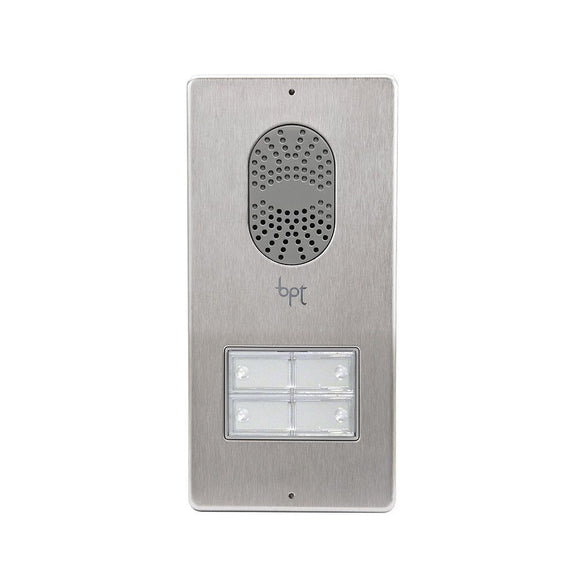

  • From 1 to 4 calls depending on buttons selected
  • Speaker, microphone and electric lock-timing adjustments
  • High efficiency 4 LED illuminator
  • Surface mounted
Note:
  • Power supply supports cable runs up to 50m
  • Alternative Power Supplies available on request
  • Alternative Buttons sold separately

Model - LC 01

Dimensions (mm)

99 ?? 207 ?? 30

Power supply (V)

16 / 18 DC

Consumption in stand-by mode (mA)

75

Max. absorption (mA)

120

Operating temperature (?øC)

-25 / +50

Protection rating (IP)

54

Color

Brushed Stainless Steel
