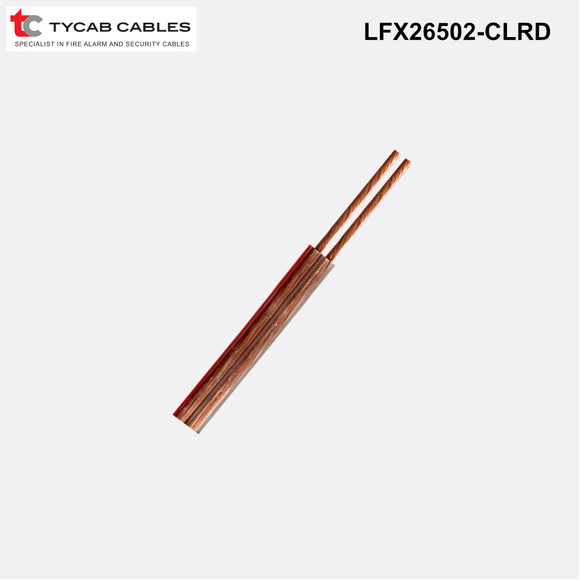

LFX26502-CLRD - Tycab Speaker Cable 2.0mm Clear Jacket, 100m or 500m

Tycab SKU: LFX26502-CLRD-100

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.
Select Option: Tycab Speaker Cable 2.0mm - 100m - Clear

Please Note: Estimated delivery details below

Estimated nationwide delivery between Tuesday, May 13 and Monday, May 19, if ordered today - (Friday, May 09).

Features Specs

Includes:

  • 2 Core Parallel Webbed (Figure 8) 65/.2 (2.0mmsq). P.A.C.W.
  • Flexible Clear P.V.C insulated. Extra Low Voltage cable. Not for mains connection.
  • Oxygen-Free copper. RoHS compliant PVC.
  • Available 100m or 500m drums



Conductor: 65 strands of 0.2mm nom. Plain Annealed Copper to AS1125 drawn from Class 102 copper to AS1574.
Max. D.C. resistance at 20C : 9.1 ohms / km

Insulation: Clear P.V.C. 75c min. rating.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 3.35 x 7.20mm.
Nominal Wall Thickness: 0.66 mm.

Identification: By STRIPE on one leg as per customer order.

Printing: On sheath at 1M intervals (metre marked): TYCAB 2mm2 2×65/.2 Speaker Cable 001M >I<
